SpringCloud 整合 Zuul 源码分析

今天我们分析下 SpringCloud 是怎么整合 Zuul 的。

回顾

  1. Zuul是通过ZuulServletFilter或者 ZuulServlet接管我们的请求

  2. Zuul整个流程如下：

    ZuulServletFilter(ZuulServlet) -> ZuulRunner -> FilterProcessor -> ZuulFilter

目标

明确SpringMVC和Zuul框架是怎么配合的

引入Zuul的版本信息

<properties>
	<spring-cloud.version>Hoxton.RELEASE</spring-cloud.version>
</properties>

<dependencyManagement>
	<dependencies>
  	<dependency>
    	<groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
</dependencyManagement>

<dependencies>
	<dependency>
  	<groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
   </dependency>
</dependencies>

Zuul功能启用及配置的加载

Zuul的启用 - @EnableZuulProxy

// 引入断路器功能
@EnableCircuitBreaker
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
// 注入触发Zuul配置类的标记Bean
@Import(ZuulProxyMarkerConfiguration.class)
public @interface EnableZuulProxy {
}

ZuulProxyAutoConfiguration - Zuul自动配置Bean

// 此配置类不会被代理
@Configuration(proxyBeanMethods = false)
// 引入Ribbon相关配置
@Import({ RibbonCommandFactoryConfiguration.RestClientRibbonConfiguration.class,
		RibbonCommandFactoryConfiguration.OkHttpRibbonConfiguration.class,
		RibbonCommandFactoryConfiguration.HttpClientRibbonConfiguration.class,
		HttpClientConfiguration.class })
@ConditionalOnBean(ZuulProxyMarkerConfiguration.Marker.class)
public class ZuulProxyAutoConfiguration extends ZuulServerAutoConfiguration {

	// 省略部分代码。。。

	// 加载pre filters bean
	@Bean
	@ConditionalOnMissingBean(PreDecorationFilter.class)
	public PreDecorationFilter preDecorationFilter(RouteLocator routeLocator,
			ProxyRequestHelper proxyRequestHelper) {
		return new PreDecorationFilter(routeLocator,
				this.server.getServlet().getContextPath(), this.zuulProperties,
				proxyRequestHelper);
	}

	// 加载route filters bean
	@Bean
	@ConditionalOnMissingBean(RibbonRoutingFilter.class)
	public RibbonRoutingFilter ribbonRoutingFilter(ProxyRequestHelper helper,
			RibbonCommandFactory<?> ribbonCommandFactory) {
		RibbonRoutingFilter filter = new RibbonRoutingFilter(helper, ribbonCommandFactory,
				this.requestCustomizers);
		return filter;
	}

  // 加载route filters bean
	@Bean
	@ConditionalOnMissingBean({ SimpleHostRoutingFilter.class,
			CloseableHttpClient.class })
	public SimpleHostRoutingFilter simpleHostRoutingFilter(ProxyRequestHelper helper,
			ZuulProperties zuulProperties,
			ApacheHttpClientConnectionManagerFactory connectionManagerFactory,
			ApacheHttpClientFactory httpClientFactory) {
		return new SimpleHostRoutingFilter(helper, zuulProperties,
				connectionManagerFactory, httpClientFactory);
	}
}

ZuulServerAutoConfiguration - Zuul自动配置Bean

@Configuration(proxyBeanMethods = false)
// 加载zuul的自定义properties配置
@EnableConfigurationProperties({ ZuulProperties.class })
// 加载前提：classpath下有类ZuulServlet和ZuulServletFilter
@ConditionalOnClass({ ZuulServlet.class, ZuulServletFilter.class })
@ConditionalOnBean(ZuulServerMarkerConfiguration.Marker.class)
public class ZuulServerAutoConfiguration {

	// 省略部分代码。。。

  // ZuulController是Controller的一个实现，负责将拦截的请求交给ZuulServlet处理
	@Bean
	public ZuulController zuulController() {
		return new ZuulController();
	}

  // ZuulHandlerMapping负责路由匹配
	@Bean
	public ZuulHandlerMapping zuulHandlerMapping(RouteLocator routes,
			ZuulController zuulController) {
		ZuulHandlerMapping mapping = new ZuulHandlerMapping(routes, zuulController);
		mapping.setErrorController(this.errorController);
		mapping.setCorsConfigurations(getCorsConfigurations());
		return mapping;
	}

  // 默认加载ZuulServlet
	@Bean
	@ConditionalOnMissingBean(name = "zuulServlet")
	@ConditionalOnProperty(name = "zuul.use-filter", havingValue = "false",
			matchIfMissing = true)
	public ServletRegistrationBean zuulServlet() {
		ServletRegistrationBean<ZuulServlet> servlet = new ServletRegistrationBean<>(
				new ZuulServlet(), this.zuulProperties.getServletPattern());
		// The whole point of exposing this servlet is to provide a route that doesn't
		// buffer requests.
		servlet.addInitParameter("buffer-requests", "false");
		return servlet;
	}

  // 当配置zuul.use-filter=true，加载zuulServletFilter, 表示用filter来拦截请求
	@Bean
	@ConditionalOnMissingBean(name = "zuulServletFilter")
	@ConditionalOnProperty(name = "zuul.use-filter", havingValue = "true",
			matchIfMissing = false)
	public FilterRegistrationBean zuulServletFilter() {
		final FilterRegistrationBean<ZuulServletFilter> filterRegistration = new FilterRegistrationBean<>();
		filterRegistration.setUrlPatterns(
				Collections.singleton(this.zuulProperties.getServletPattern()));
		filterRegistration.setFilter(new ZuulServletFilter());
		filterRegistration.setOrder(Ordered.LOWEST_PRECEDENCE);
		// The whole point of exposing this servlet is to provide a route that doesn't
		// buffer requests.
		filterRegistration.addInitParameter("buffer-requests", "false");
		return filterRegistration;
	}

	// 在Zuul各阶段filter处理过程中捕获异常，SendErrorFilter会forward "/error"
	@Bean
	public SendErrorFilter sendErrorFilter() {
		return new SendErrorFilter();
	}

	@Configuration(proxyBeanMethods = false)
	protected static class ZuulFilterConfiguration {

    // 注入Spring容器中的ZuulFilter类型所有的实现类，包括内置和自定义的Filter，内置的有10个
		@Autowired
		private Map<String, ZuulFilter> filters;

    // 注册ZuulFilter到FilterRegistry中
		@Bean
		public ZuulFilterInitializer zuulFilterInitializer(CounterFactory counterFactory,
				TracerFactory tracerFactory) {
			FilterLoader filterLoader = FilterLoader.getInstance();
			FilterRegistry filterRegistry = FilterRegistry.instance();
			return new ZuulFilterInitializer(this.filters, counterFactory, tracerFactory,
					filterLoader, filterRegistry);
		}
	}
}

以上两个类，加载了Zuul的相关配置类：

  • 拦截请求：

    • 和SpringMVC结合的Bean：ZuulController、ZuulHandlerMapping
    • 通过Web Filter拦截请求Bean：ZuulServletFilter

  • Zuul流程需要的Bean：

    • 自带的ZuulFilter，有10个下面会一一介绍

    • 监控相关

    • ZuulFilter的容器：FilterRegistry

默认的ZuulFilters

Pre Filter

  1. ServletDetectionFilter order = -3

    作用：判断请求是否是由DispatcherServlet or ZuulServlet传来的，并把判断结果以键值对的形式放在RequestContext

  2. Servlet30WrapperFilter order = -2

    作用：包装request，兼容servlet3.0

  3. FormBodyWrapperFilter order = -1

    作用：包装表单数据并为下游服务重新编码

  4. DebugFilter order = 1

    作用：如果debug请求，那么会在RequestContext中标记为debug请求和routing

  5. PreDecorationFilter = 5

    作用：请求路由和zuul路由配置进行匹配，并设置与代理相关的头部信息

Route Filter

  1. RibbonRoutingFilter order = 10

    作用：使用Ribbon、Hytrix和可插拔的httpClient发送请求，serviceId、是否重试以及负载均衡策略在相关联的RequestContext获取

  2. SimpleHostRoutingFilter order = 100

    作用：用HttpClient发送请求到预定的URLs，URLs通过RequestContext#getRouteHost()获取

  3. SendForwardFilter order = 500

    作用：用RequestDispatcherforwards请求，转发的地址是RequestContext的FilterConstants#FORWARD_TO_KEY对应value

Post Filter

  1. SendResponseFilter order = 1000

    作用：写 代理的请求得到的响应 到 当前响应

Error Filter

  1. SendErrorFilter order = 0

    作用：如果RequestContext#getThrowable() 不为空，默认将请求转发到 /error

SpringMVC怎么把请求转发给Zuul？

从配置类分析

从上述配置可以看下几个重要的配置类源码：

ZuulController

public class ZuulController extends ServletWrappingController {

	public ZuulController() {
    // 设置Servlet的类型
		setServletClass(ZuulServlet.class);
		setServletName("zuul");
		setSupportedMethods((String[]) null); // Allow all
	}

	@Override
	public ModelAndView handleRequest(HttpServletRequest request,
			HttpServletResponse response) throws Exception {
		try {
			// We don't care about the other features of the base class, just want to
			// handle the request
			return super.handleRequestInternal(request, response);
		}
		finally {
			// @see com.netflix.zuul.context.ContextLifecycleFilter.doFilter
			RequestContext.getCurrentContext().unset();
		}
	}

}

ServletWrappingController

public class ServletWrappingController extends AbstractController implements BeanNameAware, InitializingBean, DisposableBean {
  // 省略代码。。

	@Override
		public void afterPropertiesSet() throws Exception {
			if (this.servletClass == null) {
				throw new IllegalArgumentException("'servletClass' is required");
			}
			if (this.servletName == null) {
				this.servletName = this.beanName;
			}
      // 通过反射 初始化servlet
			this.servletInstance = ReflectionUtils.accessibleConstructor(this.servletClass).newInstance();
			this.servletInstance.init(new DelegatingServletConfig());
		}

		// 通过servlet实例处理请求
		@Override
		protected ModelAndView handleRequestInternal(HttpServletRequest request, HttpServletResponse response)
		throws Exception {
			Assert.state(this.servletInstance != null, "No Servlet instance");
			this.servletInstance.service(request, response);
			return null;
		}
}

ZuulHandlerMapping

public class ZuulHandlerMapping extends AbstractUrlHandlerMapping {
  	private final ZuulController zuul;
  	private volatile boolean dirty = true;

  // 根据寻找路由处理器
	@Override
	protected Object lookupHandler(String urlPath, HttpServletRequest request) throws Exception {
		if (this.errorController != null && urlPath.equals(this.errorController.getErrorPath())) {
			return null;
		}
    // 如果属于配置的忽视路由，则返回null
		if (isIgnoredPath(urlPath, this.routeLocator.getIgnoredPaths())) return null;
		RequestContext ctx = RequestContext.getCurrentContext();
		if (ctx.containsKey("forward.to")) {
			return null;
		}
		if (this.dirty) {
      // dirty默认为true，第一次会触发注册处理器到Spring容器中
      // 或者发送zuul路由刷新事件，设置dirty为true，见ZuulRefreshListener
			synchronized (this) {
				if (this.dirty) {
					registerHandlers();
					this.dirty = false;
				}
			}
		}
    // 交给Spring查找路由对应的handler
		return super.lookupHandler(urlPath, request);
	}

  // 注册配置路由对应的处理器
	private void registerHandlers() {
		Collection<Route> routes = this.routeLocator.getRoutes();
		if (routes.isEmpty()) {
			this.logger.warn("No routes found from RouteLocator");
		}
		else {
			for (Route route : routes) {
        // 在Spring容器中注册zuul路由配置对应ZuulController处理器
				registerHandler(route.getFullPath(), this.zuul);
			}
		}
	}

}

以上配置类：

  • ZuulController：它是ServletWrappingController的 子类，将请求给到ZuulServlet去处理
  • ZuulHandlerMapping：它是AbstractUrlHandlerMapping的子类，将请求路由到ZuulController处理
  • ZuulServlet：由上一篇知道它是Zuul流程的入口之一

回顾SpingMVC对于请求的处理流程

  1. 客户端请求交给SpringMVC的DispatcherServlet统一处理
  2. 通过已经注册的HandlerMapping, 根据请求路由找到处理器执行链HandlerExecutionChain，包括请求各个拦截器HandlerInterceptor和请求处理器handler
  3. 找到请求处理器对应的适配器HandlerAdapter
  4. 执行已注册的各拦截器的preHandle方法
  5. 调用处理器处理请求，返回模型数据以及视图ModelAndView
  6. 执行已注册的各拦截器的postHandle方法
  7. 根据给定的ModelAndView进行渲染
  8. 响应客户端

结合SpingMVC对于请求的处理流程可以猜到，当请求给到SpringMVC的DispatcherServlet后，如果该路由是需要Zuul拦截的请求，那么会匹配到ZuulHandlerMapping，从而找到处理器ZuulController，之后在处理的时候，会交给ZuulServlet，后面的流程见上一篇文章。

Debug验证

zuul拦截配置：

# zuul
# 是否启用ZuulServletFilter
# zuul.use-filter=true
ribbon.ConnectTimeout = 30000
ribbon.ReadTimeout = 30000
ribbon.eureka.enabled = false

management.endpoints.web.exposure.include = *
zuul.routes.test.path = /test/**
zuul.routes.test.stripPrefix = false
test.ribbon.listOfServers = ${service.test}
service.test=http://127.0.0.1:8081/t/test

请求：curl -v http://127.0.0.1:8080/test

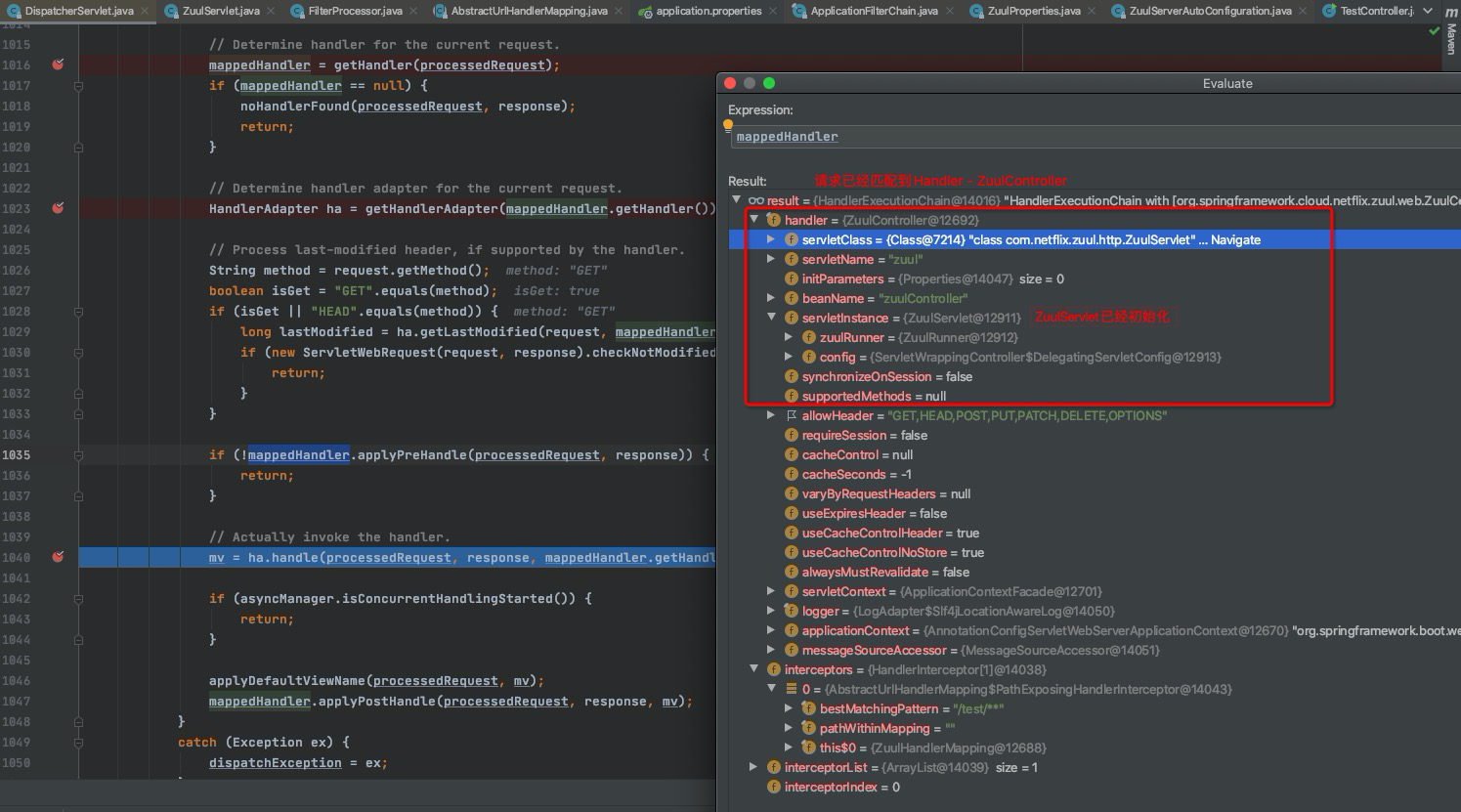

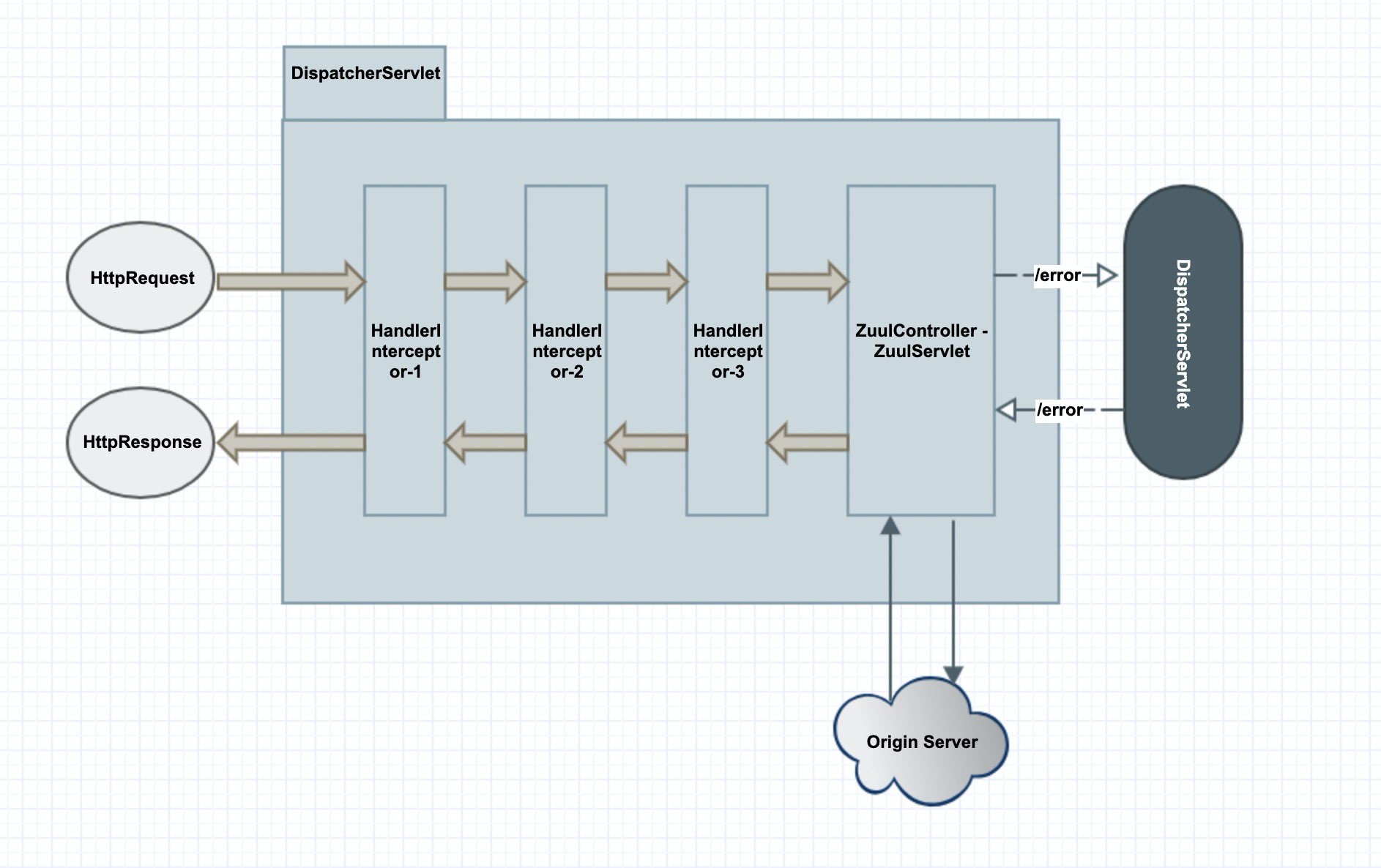

图示过程：

image-20200724183906920

image-20200724184049891

结果显示：猜想是正确的。 大致流程：DispatcherServlet -> ZuulController -> ZuulServlet -> 执行各阶段ZuulFilters

image-20200803183334690

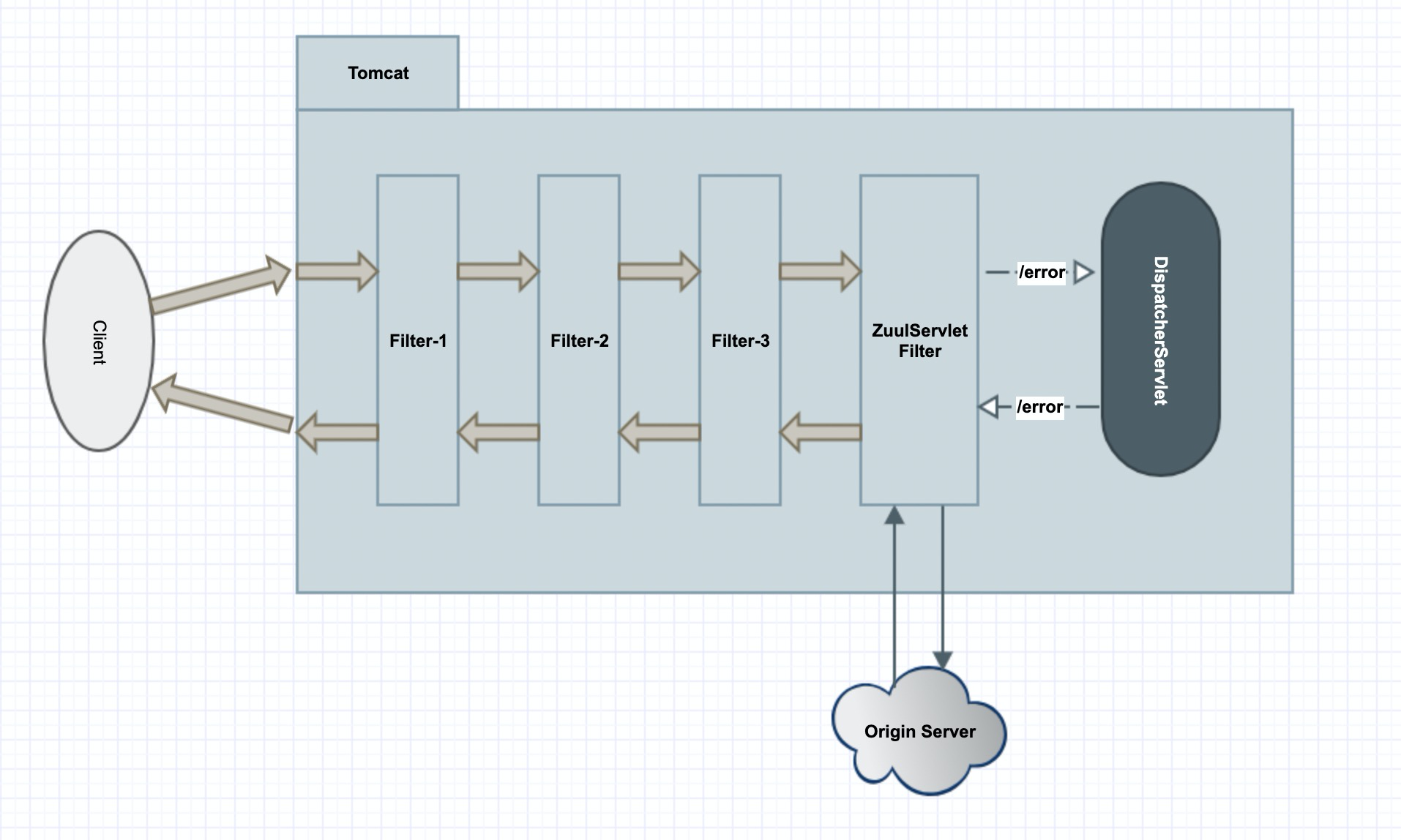

ZuulServletFilter - 另一种拦截请求流程

配置

	// 在类ZuulServerAutoConfiguration中加载

	@Bean
	@ConditionalOnMissingBean(name = "zuulServletFilter")
	@ConditionalOnProperty(name = "zuul.use-filter", havingValue = "true",
			matchIfMissing = false)
	public FilterRegistrationBean zuulServletFilter() {
		final FilterRegistrationBean<ZuulServletFilter> filterRegistration = new FilterRegistrationBean<>();
    // URL匹配规则: /zuul
		filterRegistration.setUrlPatterns(
				Collections.singleton(this.zuulProperties.getServletPattern()));
		filterRegistration.setFilter(new ZuulServletFilter());
		filterRegistration.setOrder(Ordered.LOWEST_PRECEDENCE);
		filterRegistration.addInitParameter("buffer-requests", "false");
		return filterRegistration;
	}

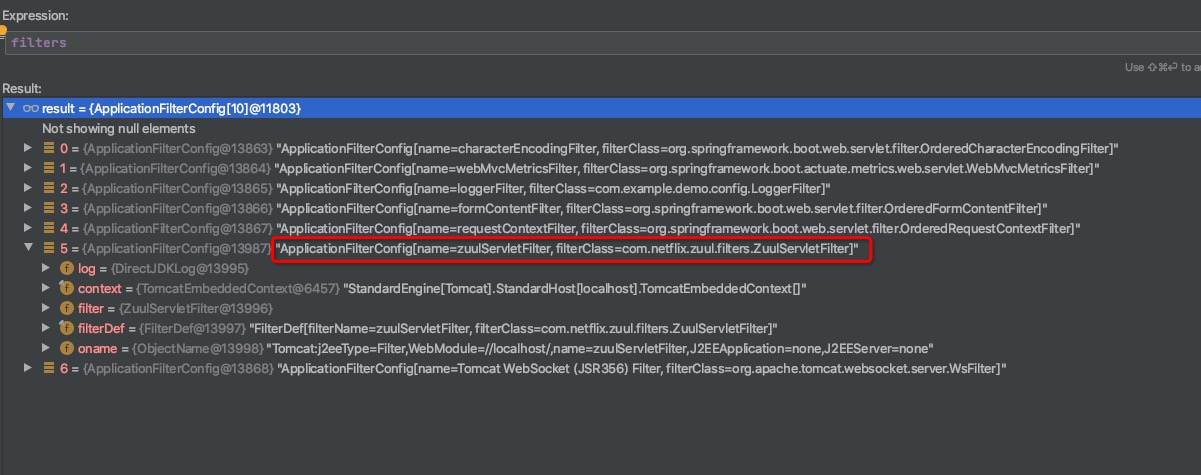

ZuulServletFilter的URL匹配规则是/zuul, 而且如果要是使得ZuulServletFilterBean加载，必须在配置文件中，添加：zuul.use-filter=true，如图：

# 是否启用filter拦截
zuul.use-filter=true
zuul.routes.test.path = /zuul/test/**
zuul.routes.test.stripPrefix = false
test.ribbon.listOfServers = ${service.test}
service.test=http://127.0.0.1:8081

ZuulServletFilter源码

public class ZuulServletFilter extends com.netflix.zuul.filters.ZuulServletFilter {
	@Override
	public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse,
			FilterChain filterChain) throws IOException, ServletException {
		RequestContext context = RequestContext.getCurrentContext();
		context.setZuulEngineRan();
		super.doFilter(servletRequest, servletResponse, filterChain);
	}
}

源码很简单，在请求上下文添加了一个标志位zuulEngineRan为true。并执行父类com.netflix.zuul.filters.ZuulServletFilter的doFilter方法，进而进入了Zuul的核心流程当中，后面的流程我们已经熟悉了。

其中要注意下，com.netflix.zuul.filters.ZuulServletFilter虽然是Filter，但是并没有在其doFilter方法中调用FilterChain的doFilter方法，我们可以回想下，如果是我们自己写FIlter，一定会调用。之所以ZuulServletFilte没有这么做，是因为它要接管请求，并不要Servlet来处理。

image-20200803183210907

大致流程如图：

image-20200803183440164

总结

Zuul和Spring结合并接管请求主要有两种方式：

  • 在Spring容器中通过注册请求处理器ZuulController和路由处理器的映射ZuulHandlerMapping，做到请求的拦截，并内置了一些ZuulFIlter保证请求的处理。
  • 通过注册ZuulServletFilter,使用Filter方式接管请求，注意默认的路径匹配及生效配置
